High Voltage Spraying gun diodes stack ceramic capacitor Module 20KV301KB12 300pF 20KV

Name: High Voltage Spraying gun diodes stack ceramic capacitor Module 20KV301KB12 300pF 20KV
Brand: ETOPMAY
Price: 1 USD

China High Voltage Spraying gun diodes stack ceramic capacitor Module 20KV301KB12 300pF 20KV wholesale

Brand Name : ETOPMAY

Model Number : TMCC02

Certification : SGS( RoHS)

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000000pcs per month

Delivery Time : 12~15 working days

Packaging Details : Bulk, Tape

Capacitance : 300pF

Voltage : 20KV

Tolerance : ±10%

Operating Temperature : -25~+85℃

Specification : 20KV301KB12

Applications : photomultipliers, ionization chambers

Package : Bulk

Contact Now

High Voltage Spraying gun diodes stack ceramic capacitor Module 20KV301KB12 300pF 20KV

High Voltage Spraying Gun Diodes Stack Ceramic Capacitor

Spraying gun diodes stack ceramic capacitor is an integrated voltage doubler integrated rectifier module, which is part of the entire circuit integrated in a device, because of its integrated structure, so it is not subject to vibration, humidity, gas
corrosion, not afraid of dust, oil Baptist, can work in harsh environments. Ideal for use in photomultipliers, ionization chambers and similar stable high voltage DC rectifiers that require high voltage, low leakage detection devices.

Features

Low dissipation, small tolerance
Good charge and discharge performance
Small size, high withstand voltage
A variety of series, a variety of assembly way
Stable electrostatic capacity

High Voltage Spraying gun diodes stack ceramic capacitor Module 20KV301KB12 300pF 20KV

Specification

Series A: enhanced, by silver fittings connection between capacitance per level, structure optimization, heat evenly, increase insulation, good reliability

Material code	Capacity	Rated voltage	D(mm)	L(mm)	PCS/STACK
20KV101KA10	100PF	20KV	5.2	62	10
20KV151KA12	150PF	20KV	6.2	60	12
20KV251KA12	250PF	20KV	5.2	59	12
20KV301KA12	300PF	20KV	8.0	60	12
20KV351KA12	350PF	20KV	6.2	58	12
20KV471KA12	470PF	20KV	8.7	63	12

B series: economy, direct welding between capacitance per level, and unilateral or bilateral derivation leads to two kinds of
structure, cheap, economical and practical, overall length can be adjusted according to customer's requirements.

Material code	Capacity	Rated voltage	D(mm)	L(mm)	PCS/STACK
20KV151KB12	150PF	20KV	6.1	71	12
10KV251KB12	250PF	10KV	5.2	66	12
20KV331KB11	330PF	20KV	7.8	66	12
20KV471KB12	470PF	20KV	8.3	75	12
20KV501KB12	500PF	20KV	8.3	74	12
30KV221KB10	220PF	30KV	8.5	91	10

Applications

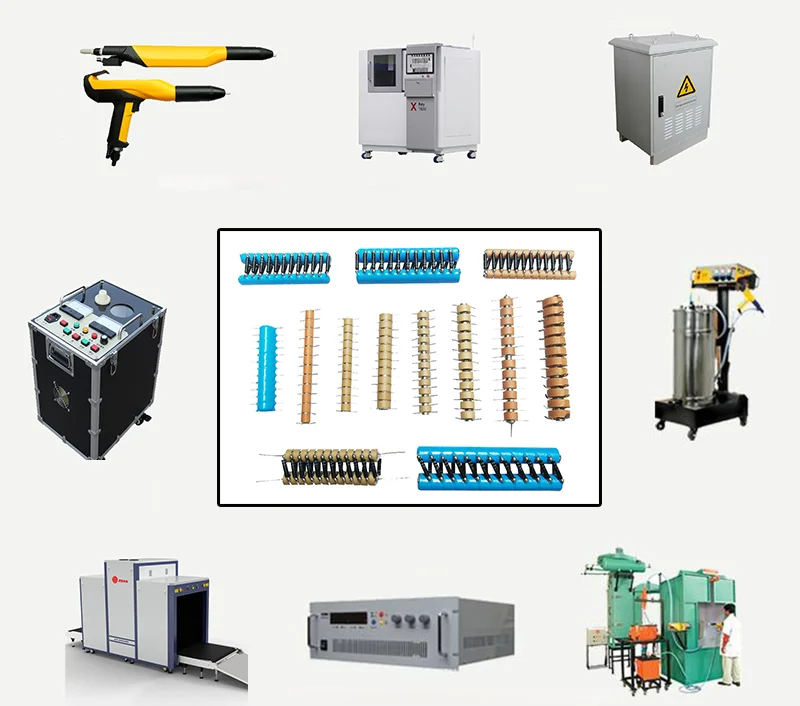

Suitable for electrostatic spraying doubler module circuit application and typical handheld high-voltage electrostatic spray gun,the built-in high voltage module, low- and high-pressure anion generator in high voltage power supply components. Static electricity generating circuit, spraying machines, electrostatic flocking equipment, doubler circuit, high frequency doubler rectifier circuit, a major part of the multistage doubler rectifier circuit, low power dc high voltage power supply, etc.

Company Profile

Shenzhen Topmay Electronic Co., Ltd is specialized in manufacturing a wide rangeof capacitors and resistors.

The company headquarter is located in Shenzhen, a flourishing southern city that is recognized as one of the economic centers of China. Since established in 1998, Topmay deal globally based on the most competitive price and excellent service. Through many years’ hard work, it has gradually grown up to be an outstanding enterprise in the field of capacitors and resistors.By closely following the latest market trends, we provide “one-stop” capacitors and resistors solution, which are applied in almost all kinds of PCB, communications, lighting, home appliance, industrial control, green energy, etc.

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

FAQ

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
