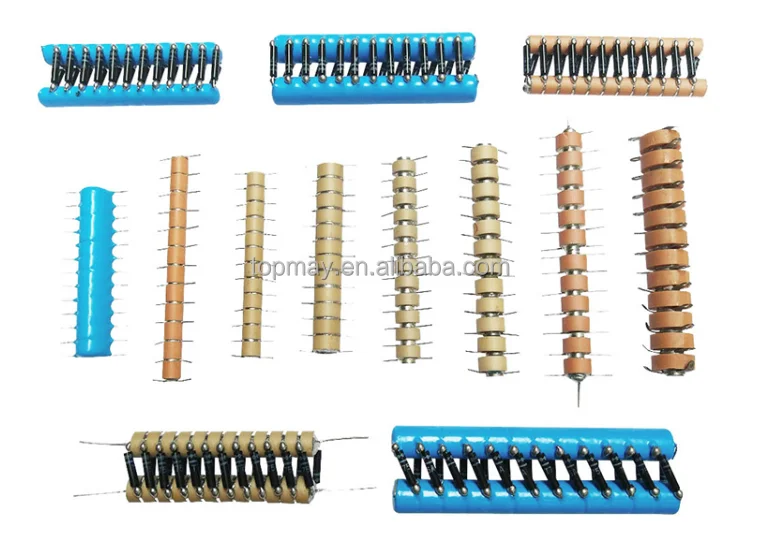

High Voltage Stacked Ceramic Capacitor 20KV 100PF D6*T5.1*L71mm
High Voltage Spraying Gun Diodes Stack Ceramic Capacitor
Spraying gun diodes stack ceramic capacitor is an integrated voltage doubler integrated rectifier module, which is part of the entire circuit integrated in a device, because of its integrated structure, so it is not subject to vibration, humidity, gas
corrosion, not afraid of dust, oil Baptist, can work in harsh environments. Ideal for use in photomultipliers, ionization chambers and similar stable high voltage DC rectifiers that require high voltage, low leakage detection devices.
Features Low dissipation, small tolerance
Good charge and discharge performance
Small size, high withstand voltage
A variety of series, a variety of assembly way
Stable electrostatic capacity
Withstand voltage test:DC1.5 times no breakdown or flashover
Series A: enhanced, by silver fittings connection between capacitance per level, structure optimization, heat evenly, increase insulation, good reliability
| Material code | Capacity | Rated voltage | D(mm) | L(mm) | PCS/STACK |
| 20KV101KA10 | 100PF | 20KV | 5.2 | 62 | 10 |
| 20KV151KA12 | 150PF | 20KV | 6.2 | 60 | 12 |
| 20KV251KA12 | 250PF | 20KV | 5.2 | 59 | 12 |
| 20KV301KA12 | 300PF | 20KV | 8.0 | 60 | 12 |
| 20KV351KA12 | 350PF | 20KV | 6.2 | 58 | 12 |
| 20KV471KA12 | 470PF | 20KV | 8.7 | 63 | 12 |
B series: economy, direct welding between capacitance per level, and unilateral or bilateral derivation leads to two kinds of
structure, cheap, economical and practical, overall length can be adjusted according to customer's requirements.
| Material code | Capacity | Rated voltage | D(mm) | L(mm) | PCS/STACK |
| 20KV151KB12 | 150PF | 20KV | 6.1 | 71 | 12 |
| 10KV251KB12 | 250PF | 10KV | 5.2 | 66 | 12 |
| 20KV331KB11 | 330PF | 20KV | 7.8 | 66 | 12 |
| 20KV471KB12 | 470PF | 20KV | 8.3 | 75 | 12 |
| 20KV501KB12 | 500PF | 20KV | 8.3 | 74 | 12 |
| 30KV221KB10 | 220PF | 30KV | 8.5 | 91 | 10 |
Applications
Suitable for electrostatic spraying doubler module circuit application and typical handheld high-voltage electrostatic spray gun,the built-in high voltage module, low- and high-pressure anion generator in high voltage power supply components. Static electricity generating circuit, spraying machines, electrostatic flocking equipment, doubler circuit, high frequency doubler rectifier circuit, a major part of the multistage doubler rectifier circuit, low power dc high voltage power supply, etc.
